Best reviews of 🔥 Quantum Keypad For The 6-Key Q-Logic NE/NE+ Series Joystick Controllers 👍

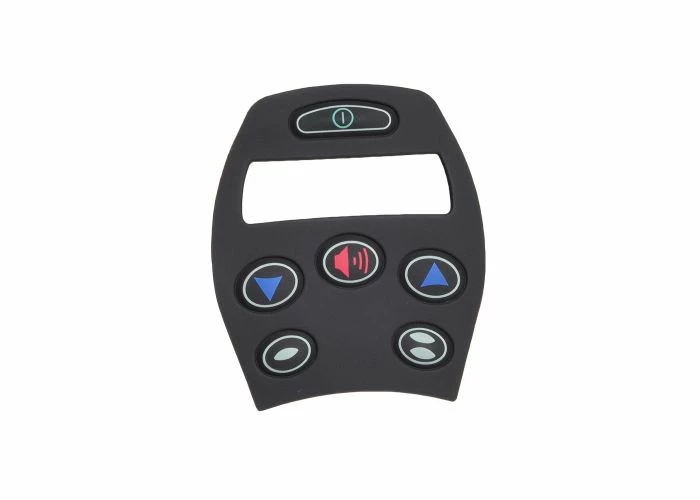

You can easily replace a worn or damaged keypad for a 6-key Q-Logic NE/NE+ Series joystick controller with a new one. Joystick controller keypads are often the first item that a power chair user needs to replace due to their daily use. With the simple peel-&-stick backing, replacing a worn out keypad is a quick and easy job.

The “NE” in the series name refers to its “non-expandable” simplicity. Designed for use on rehab power chairs without power seating applications, the Q-Logic NE Series represents the highest quality in mobility electronics without unnecessary or superfluous programming. Pride Mobility uses the Q-Logic NE Series 6-key joystick controller as an option on several their Quantum Rehab power chairs.

Installation Instructions:
1. Ensure the wheelchair power is turned off.
2. Pull the gray collar back and disconnect the joystick cable from the joystick.
3. Peel up and remove the existing, damaged keypad from the joystick face plate.
4. Inspect the joystick contacts, face plate, and joystick housing for corrosion and/or damage.
5. Using an alcohol prep pad, remove any adhesive from the joystick face plate.
6. Ensure no adhesive remains around the rim of the joystick face plate.
7. Gently remove any adhesive that may have collected in the lighting or contact cutouts of the joystick face plate.
8. After cleaning, set the joystick aside for ten minutes to allow all alcohol to evaporate from the joystick face plate.
9. Inspect once more for adhesive lumps or residue. If necessary, repeat steps 5-8 to clean the joystick face again if adhesive is present.
10. Remove the backing from the new keypad.
11. Align the bottom edge of the keypad with the bottom edge of the joystick face plate. Ensure the keypad is properly aligned with the joystick face plate before installing. The overlay is not repositionable.
12. Working from the bottom up, gently press the keypad completely into the joystick face plate.
13. Firmly press the keypad into the joystick face plate ensuring proper seal between the adhesive and joystick face plate.
14. Ensure the keypad is completely seated into the joystick face plate and no air pockets or ripples are present around the edge of the keypad.
15. Connect the joystick cable to the joystick.
16. Turn on wheelchair power and test the joystick functions.
17. If the joystick does not function properly, you may have a faulty joystick.
