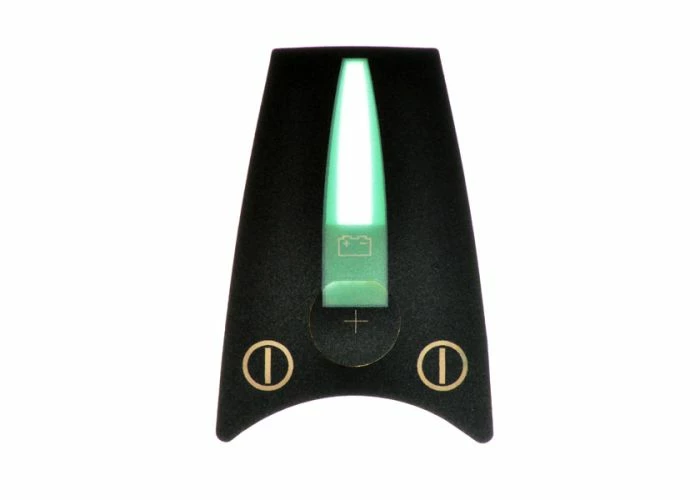

Battery indicator keypad for Pilot joystick controllers on Pride Mobility scooter models.

The following are light patterns you might see on your battery indicator and what they mean.

Red, yellow, and green lights lit means batteries are fully charged and Pilot and electrical systems are ok.

Red and yellow lights are lit means charge your batteries if possible. Pilot and electrical systems are ok.

Red lights only or slow flashing lights means charge your batteries as soon as possible. Pilot and electrical systems are ok.

Rapid flashing lights means that your joystick controller has detected a problem in the electrical system and the power chair drive operation is inhibited. You should refer to your manual for fault codes.

If you are experiencing a ripple of lights up and down then your joystick was not in neutral when it was turned on. You should then turn off your joystick, return it to the neutral position and turn it back on to reset it.

Installation Instructions:
1. Ensure the wheelchair power is turned off.
2. Pull the gray collar back and disconnect the joystick cable from the joystick.
3. Peel up and remove the existing, damaged keypad from the joystick face plate.
4. Inspect the joystick contacts, face plate, and joystick housing for corrosion and/or damage.
5. Using an alcohol prep pad, remove any adhesive from the joystick face plate.
6. Ensure no adhesive remains around the rim of the joystick face plate.
7. Gently remove any adhesive that may have collected in the lighting or contact cutouts of the joystick face plate.
8. After cleaning, set the joystick aside for ten minutes to allow all alcohol to evaporate from the joystick face plate.
9. Inspect once more for adhesive lumps or residue. If necessary, repeat steps 5-8 to clean the joystick face again if adhesive is present.
10. Remove the backing from the new keypad.
11. Align the bottom edge of the keypad with the bottom edge of the joystick face plate. Ensure the keypad is properly aligned with the joystick face plate before installing. The overlay is not repositionable.
12. Working from the bottom up, gently press the keypad completely into the joystick face plate.
13. Firmly press the keypad into the joystick face plate ensuring proper seal between the adhesive and joystick face plate.
14. Ensure the keypad is completely seated into the joystick face plate and no air pockets or ripples are present around the edge of the keypad.
15. Connect the joystick cable to the joystick.
16. Turn on wheelchair power and test the joystick functions.
17. If the joystick does not function properly, you may have a faulty joystick.
